量身定做的密封解决方案、系统集成商
苏州亿源宸智能科技有限公司(DMTek) 一家专业提供双组分动态混合、定量供胶系统的自动化集成商。目前，公司在双组分发泡密封领域已经有超过10年的丰富经验，服务过的客户超过200家。主要客户有Amphenol、Trw、Bosch、M+H、Polyshine、Lem、Roechling等国内外知名厂商。公司主营的双组分动态混合、定量供给设备不仅可以应用在现场成型发泡密封，还可以用于电子元件的浇注、罐封，以及汽车零部件的粘接等应用。公司的主要核心部件的供给和研发都来至于欧洲，同时国内公司拥有多项技术专利和发明专利。公司致力于用领先的技术和专业的服务精神，为中国智造贡献一份力量。
Foam gaskets sealing (PUR or Silicon) to automotive door modules, tail lights, control cabinets, industrial lights, electrical boxes or vents.
Electro casting resins on PU, Epoxy or Silicone basis for electrical casting of for example condensers, sensors, stripes, door locks and DC/DC transformers.
精确的混合，为您的密封需求量身定制的解决方案

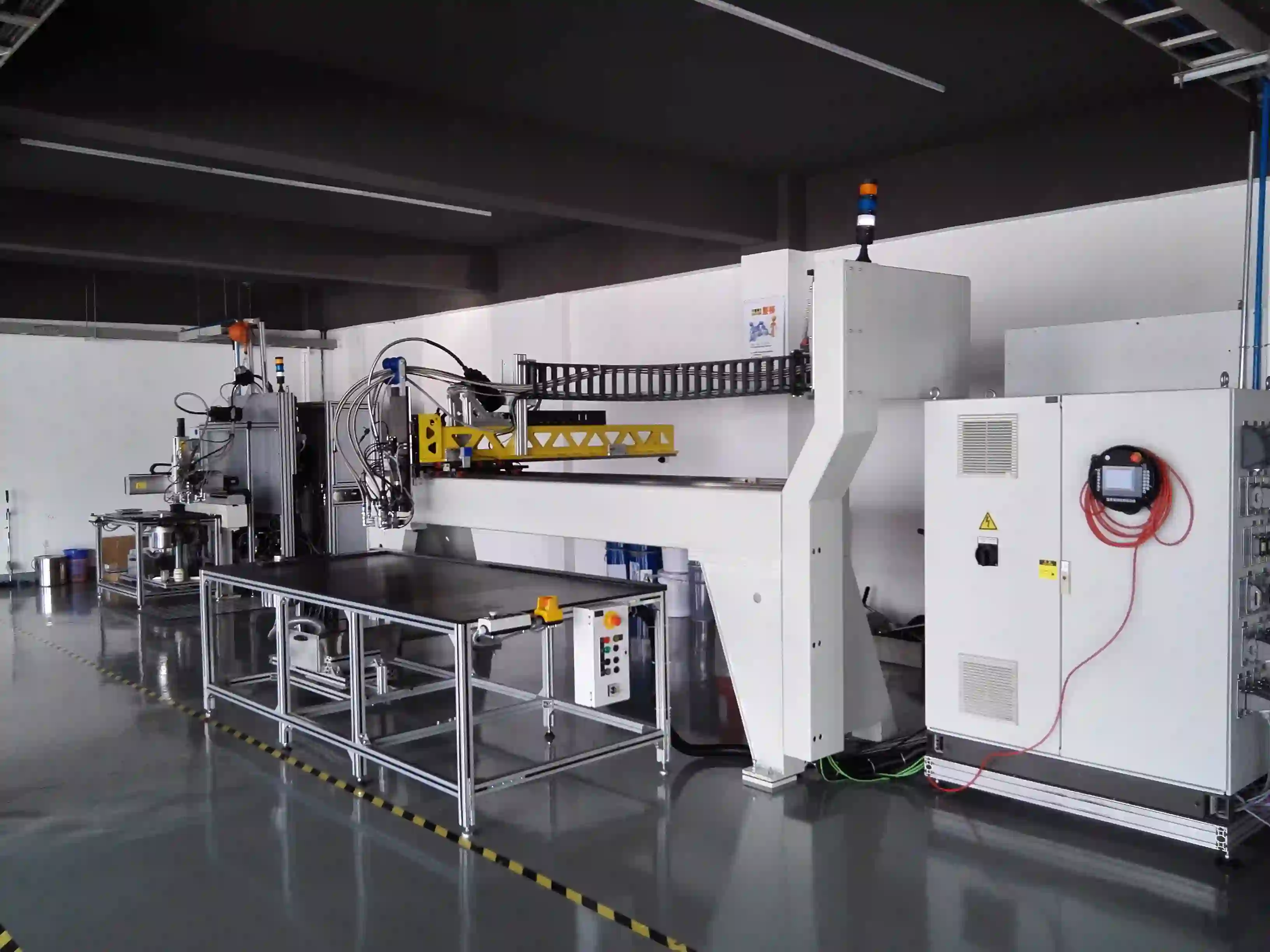

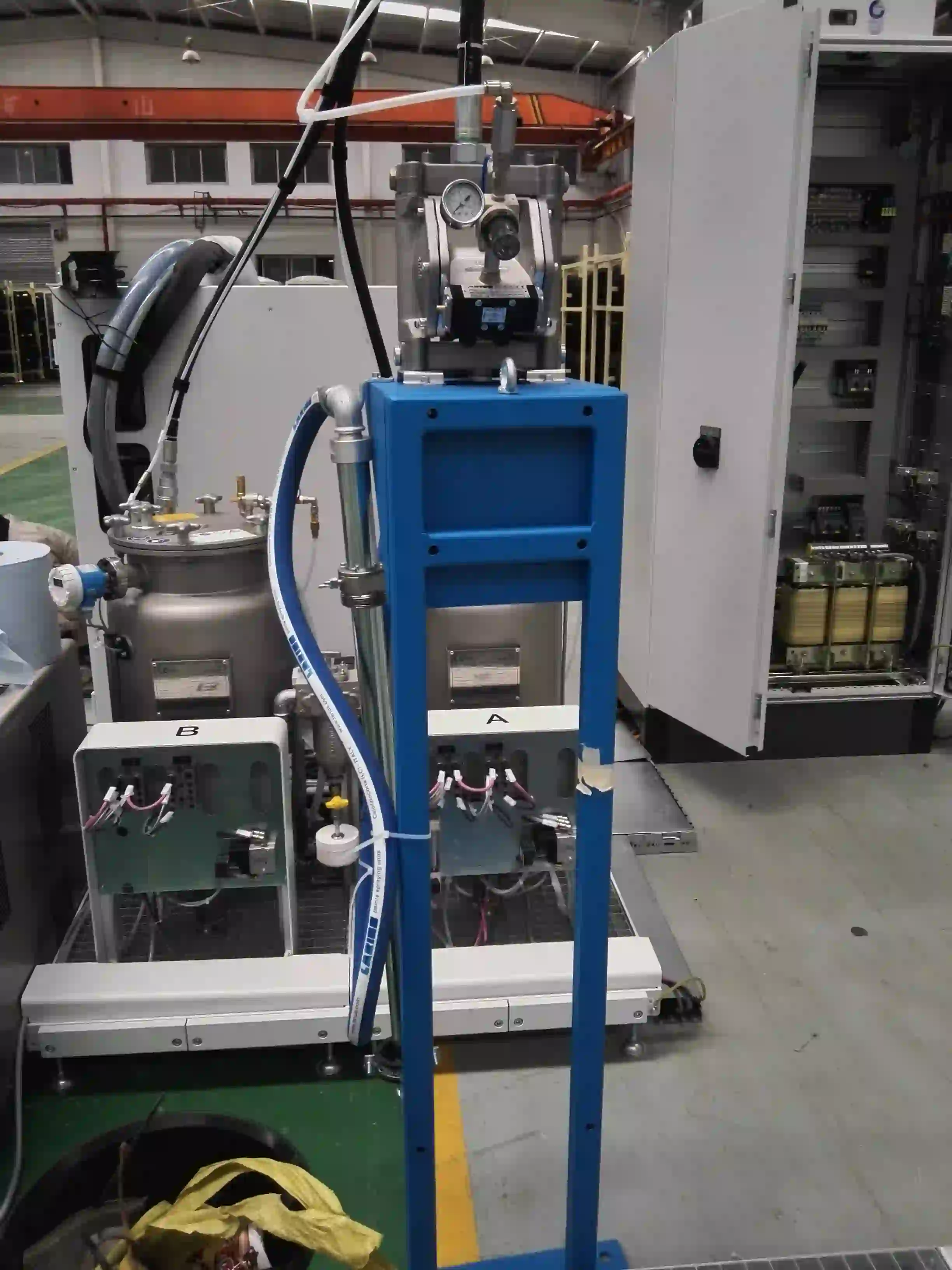

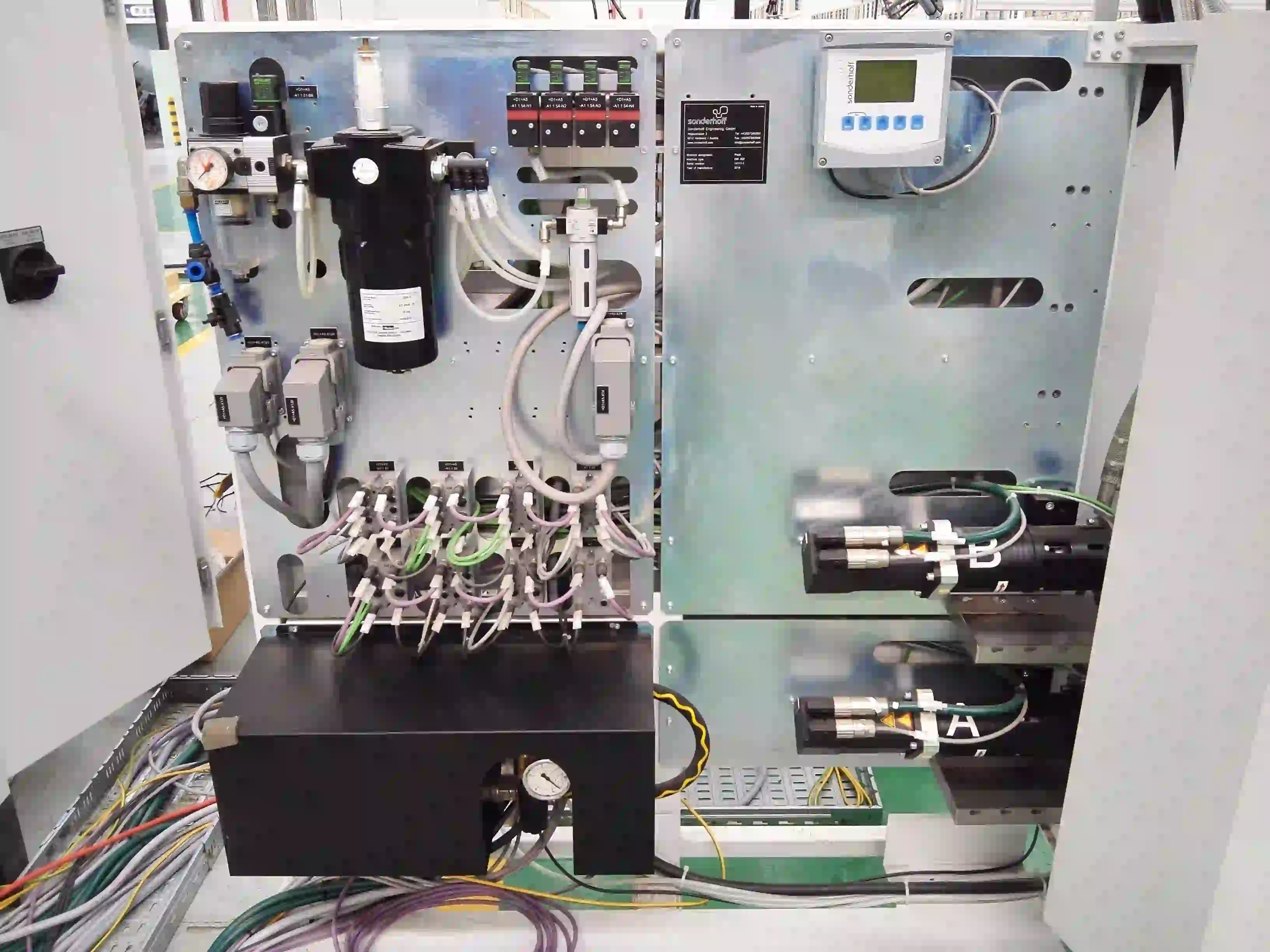

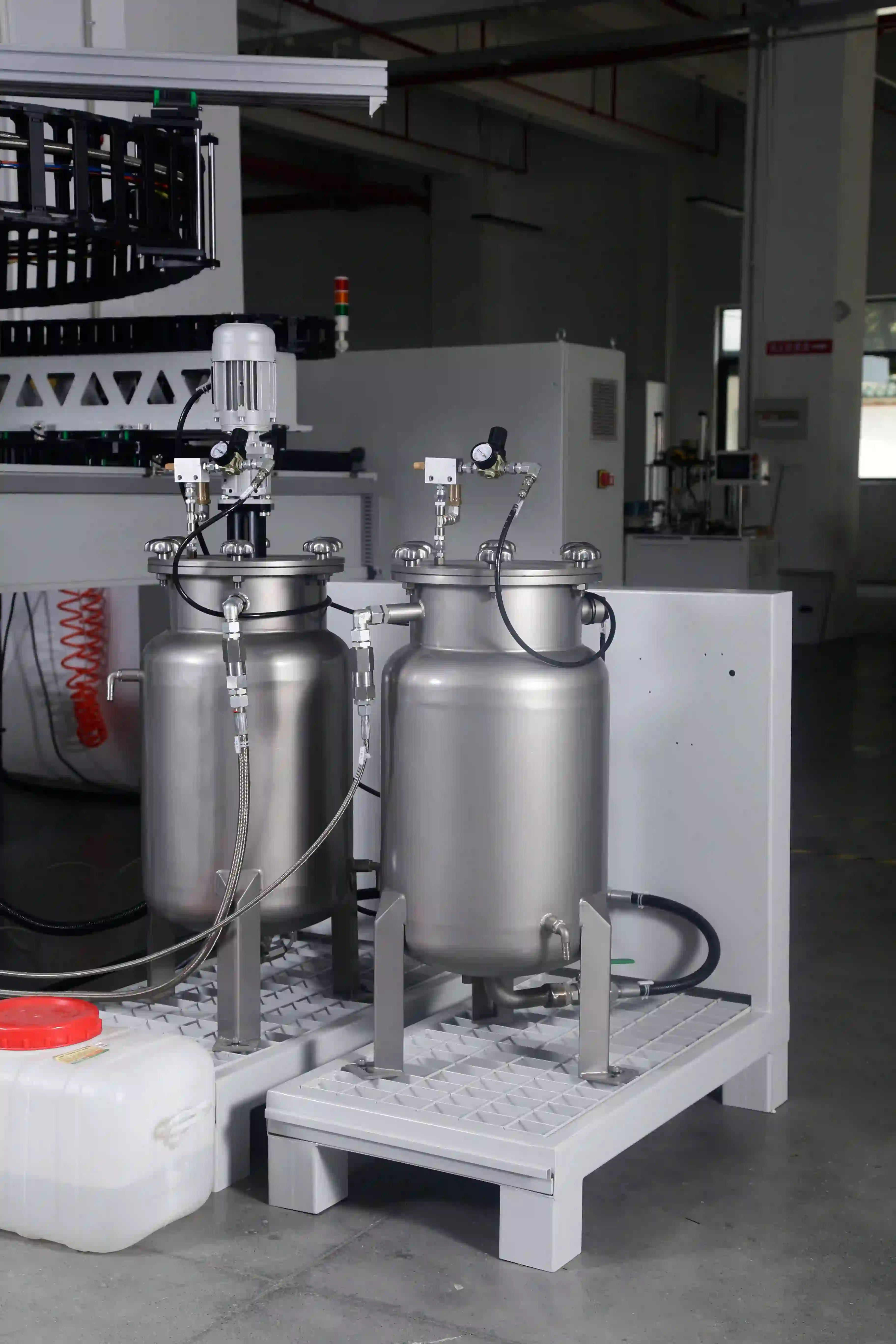

DM402 是一种双组分高性能的半、全自动化混合和定量供给系统，它可以应用于不同产品的发泡密封、浇注和粘接。DM402 能够精确加工不同黏度的液体，例如聚氨酯、硅胶、环氧树脂以及其他的聚合反应物。
经DM402加工的原料，能够保持连续稳定的高质量加工，通过采用最新技术的传感器和执行元件而进一步对机器及操作的调试给予保障。所有的设置、机器、原料和操作数据都将被自动记录，可供用户随时对过去的生产流程进行追踪。

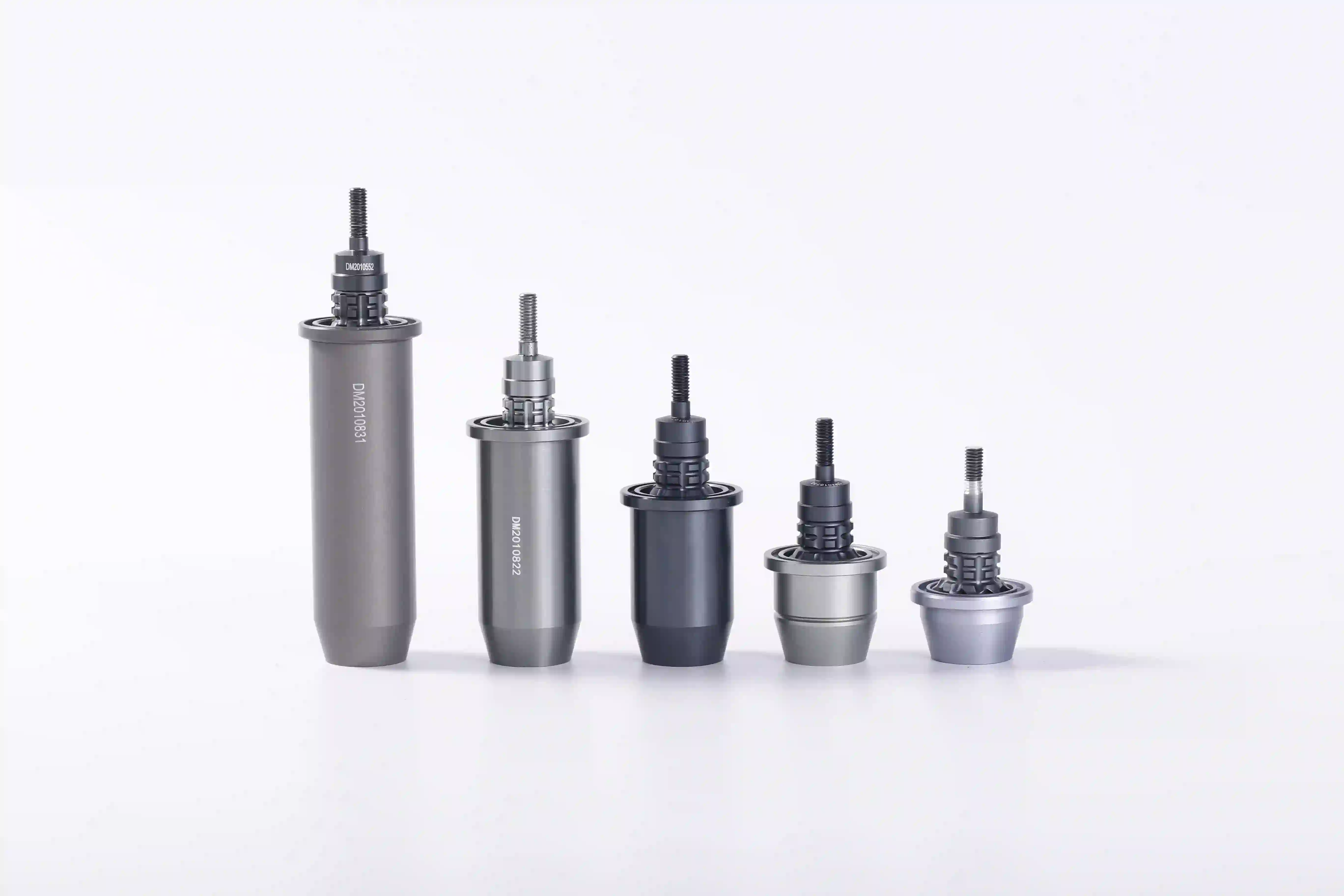

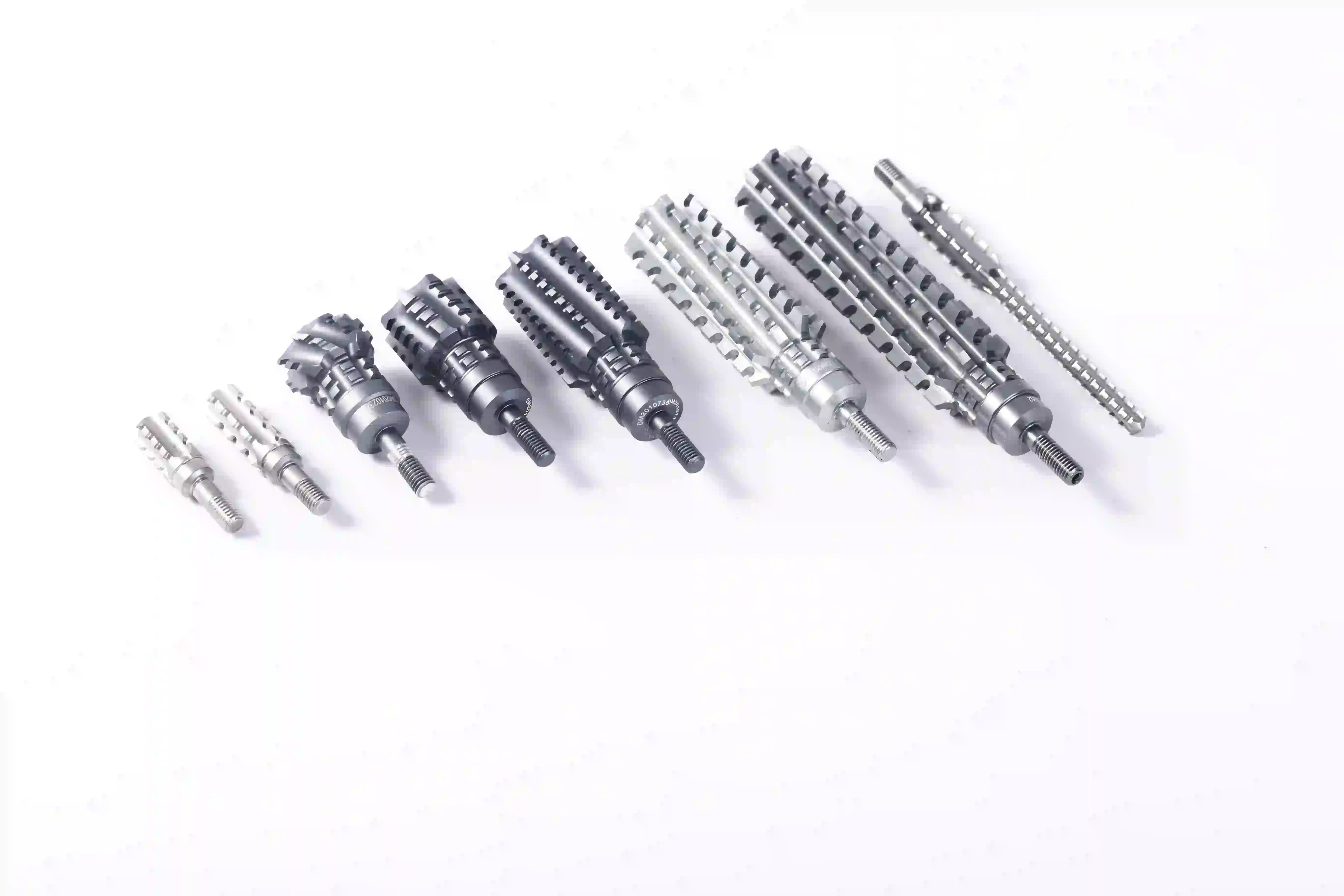

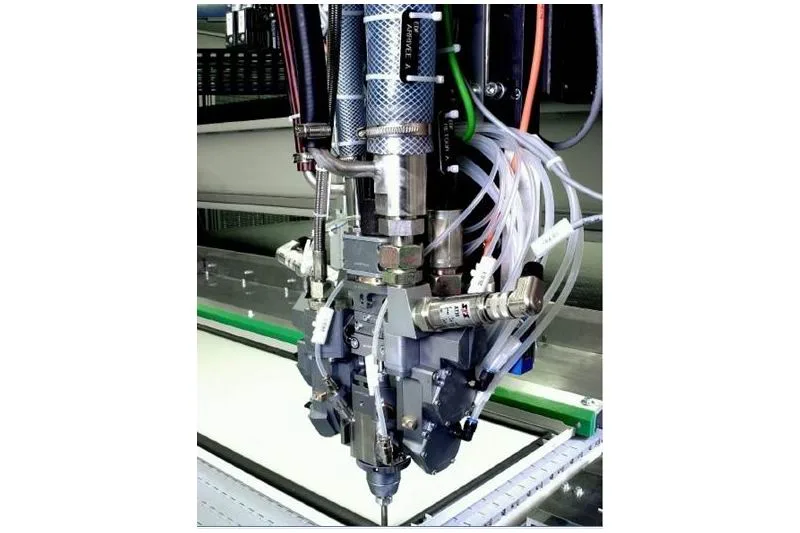

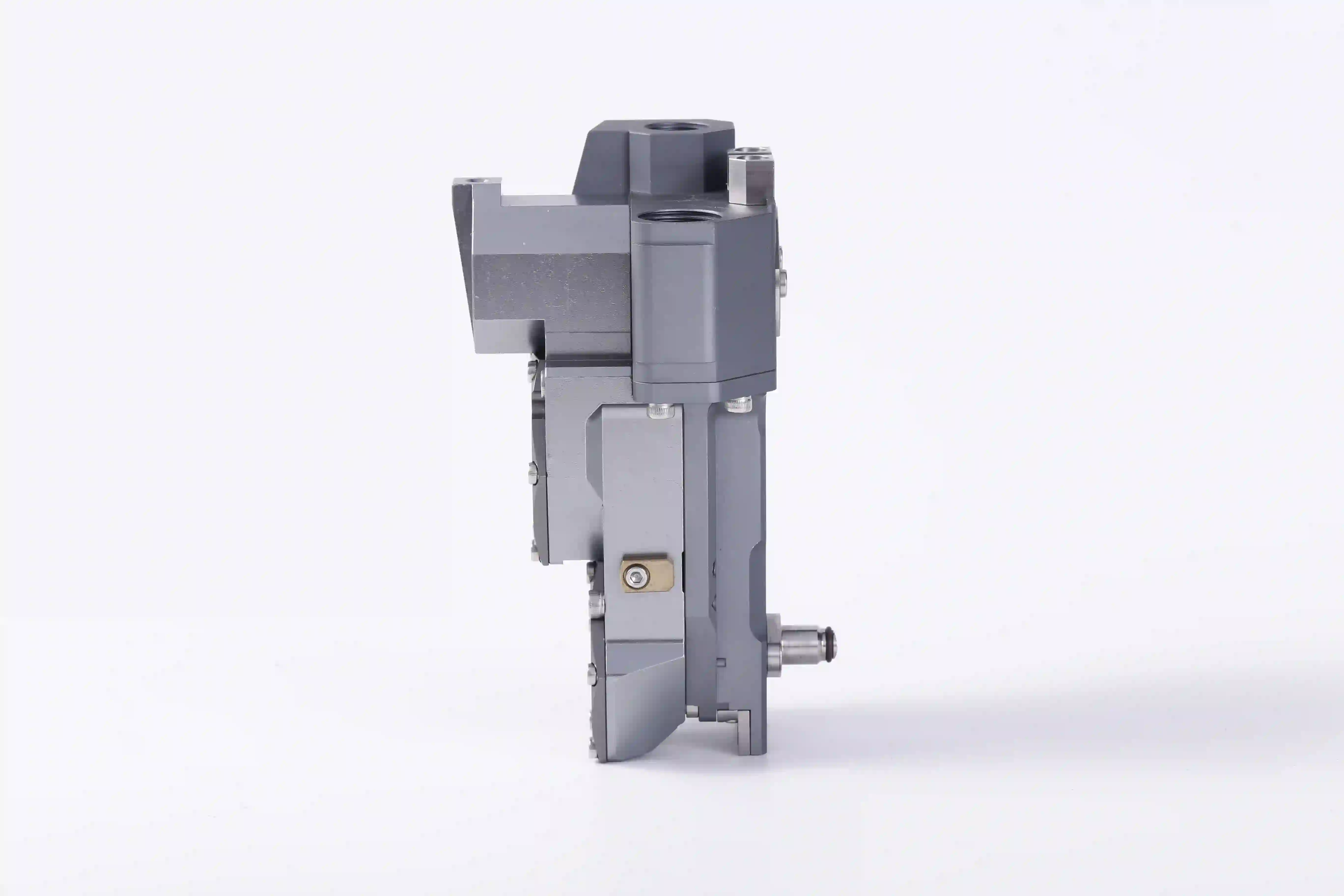

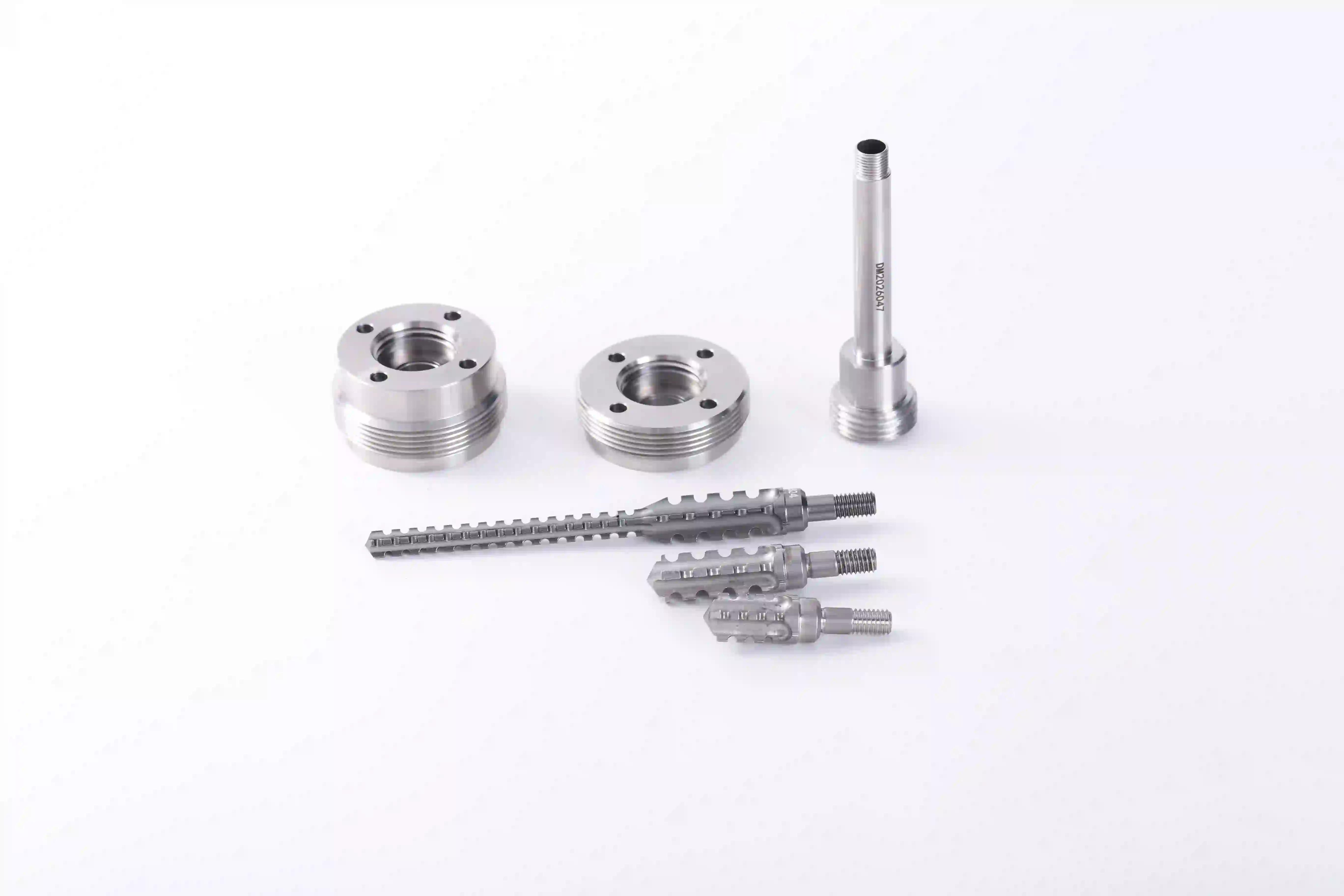

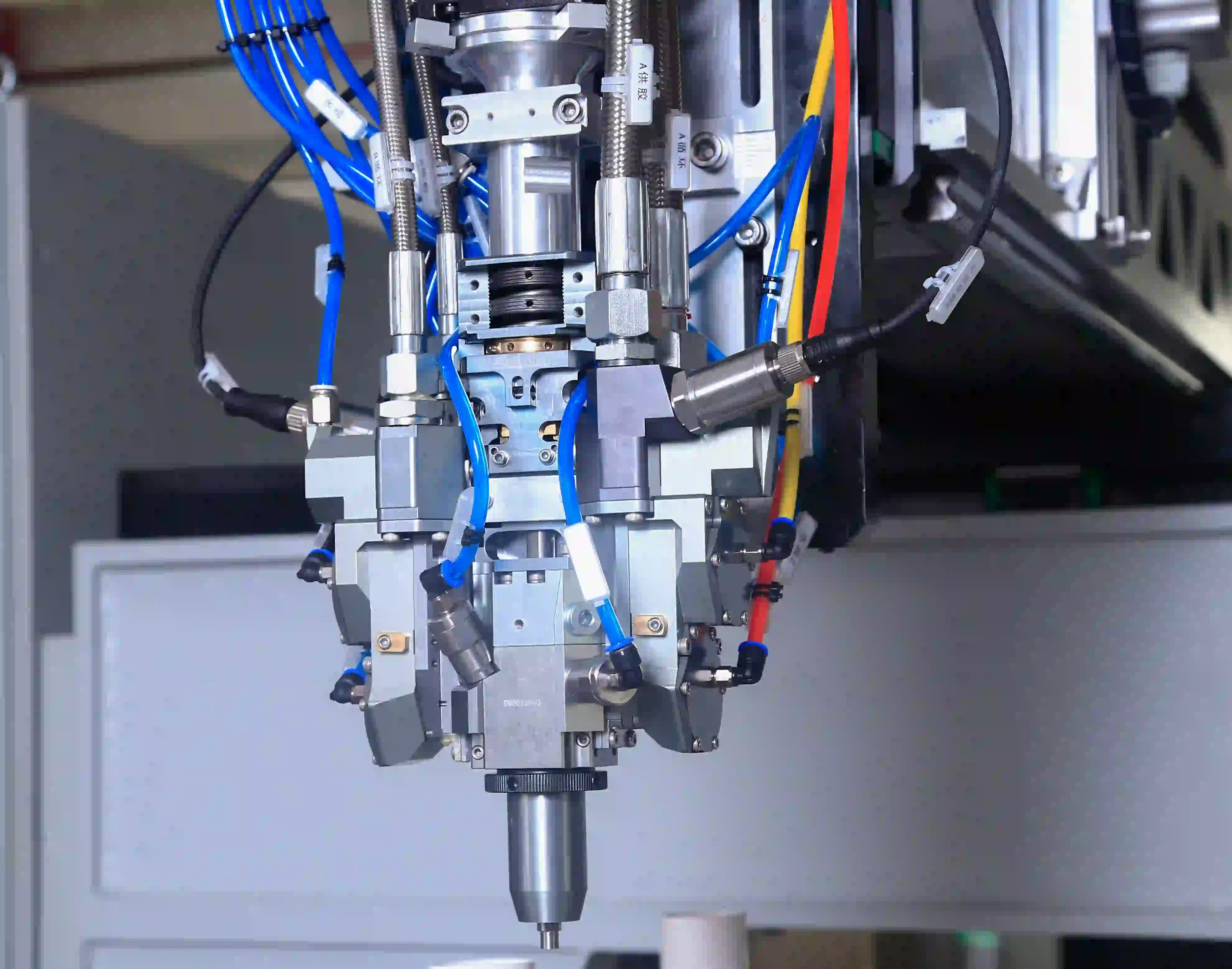

Sensor-controlled 2- / 3- component mixing head with high-pressure water rinsingand dynamic mixing system, for use with liquid to highly-viscous polymer reactivematerials for gasketing, glueing and potting.
The dispensing output range of approx. 0. 2 - 50 g/s. The mixing heads in this seriescan be equipped with up to three component valves, four flushing valve, and one blowing valve.

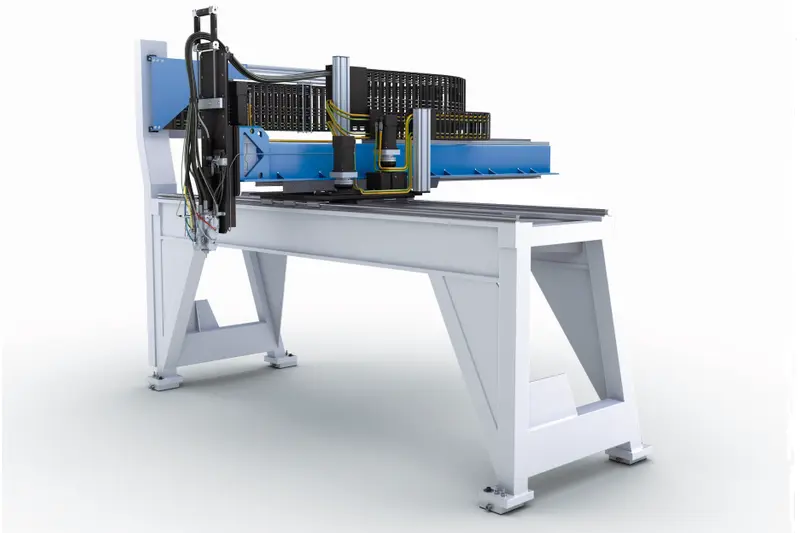

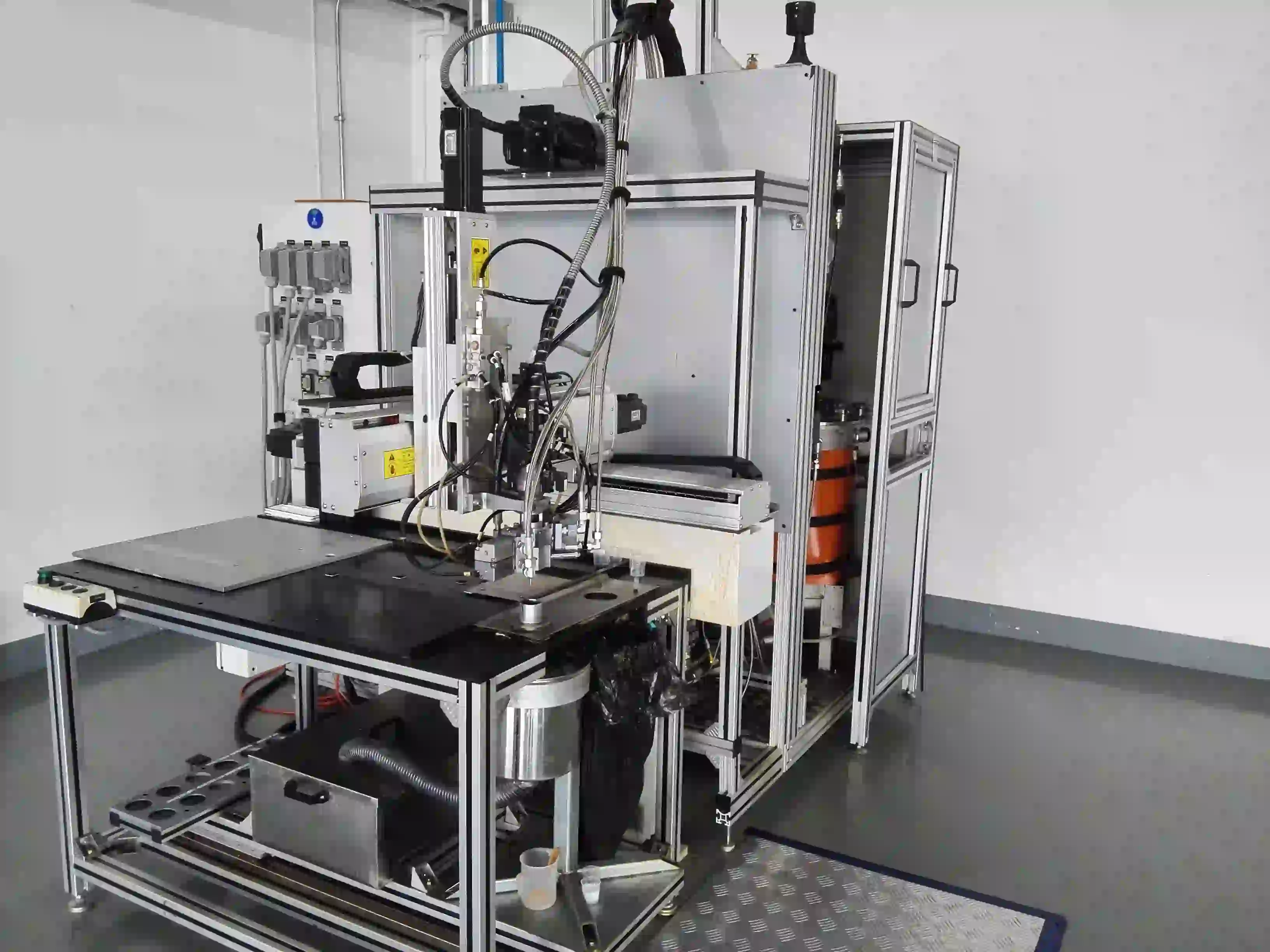

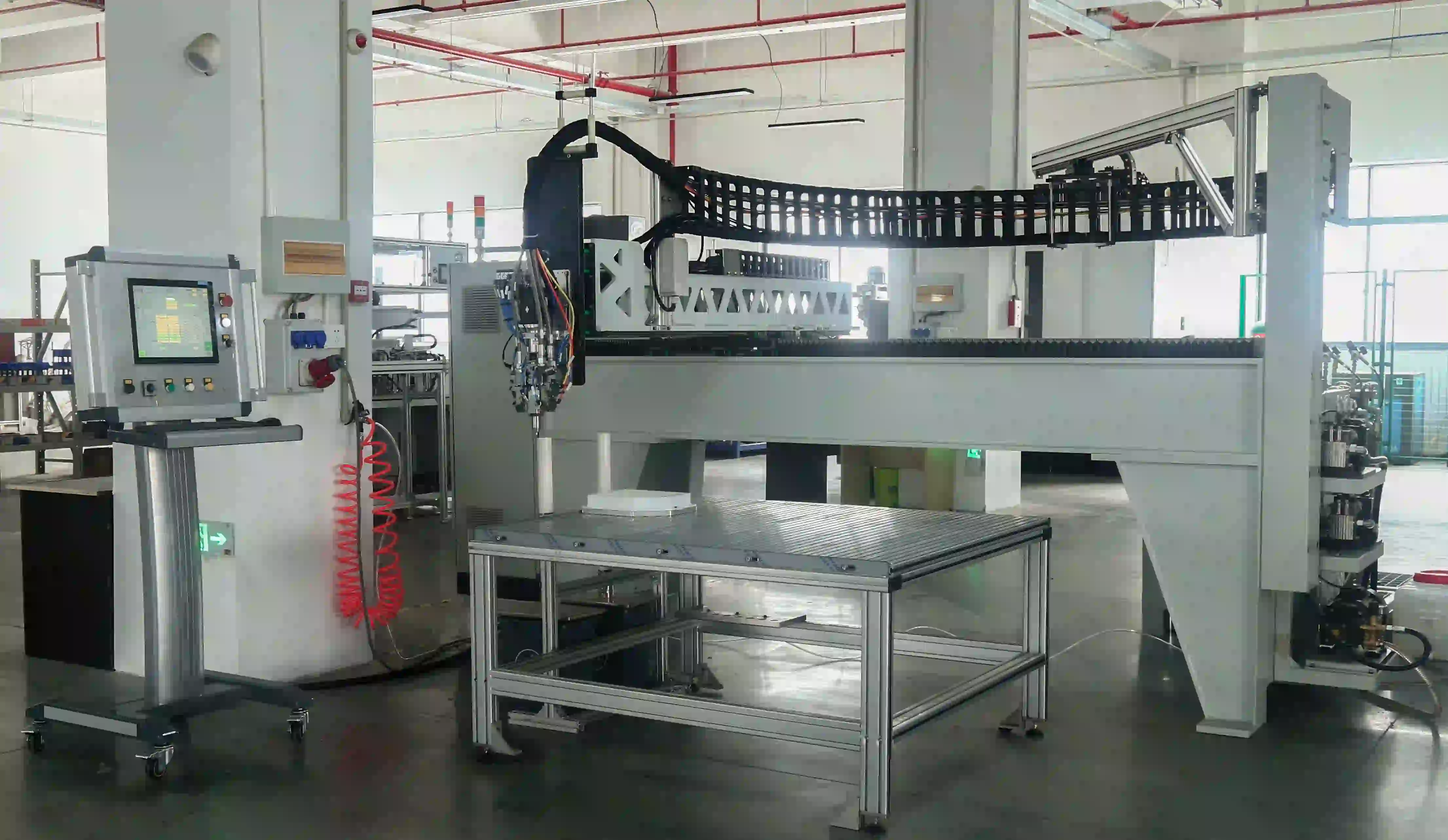

高动态3轴线性机器人由齿轮驱动，结构坚固并且具有极快的加速度，适用于高精度的应用。采用键盘操作的对话式菜单系统来运行，编程和控制机器。操作的数据可由安装在定量供料混合装置中的显示屏来显示。
最大平移速度：45M/Min
重复定位精度：0.1mm
Z轴负载：25kg
工作行程：2500*1250*300mm
We seal your products using knowledge of your requirements.
The requirements of the perfect gasket, gluing and potting systems are as vastly different
as the markets we work for. Decades of experience in the most diverse applications make us
extremely well-suited to your task. We are familiar with the demands your sector places
on the perfect gasket system and provide you solutions that have been proven in practice.

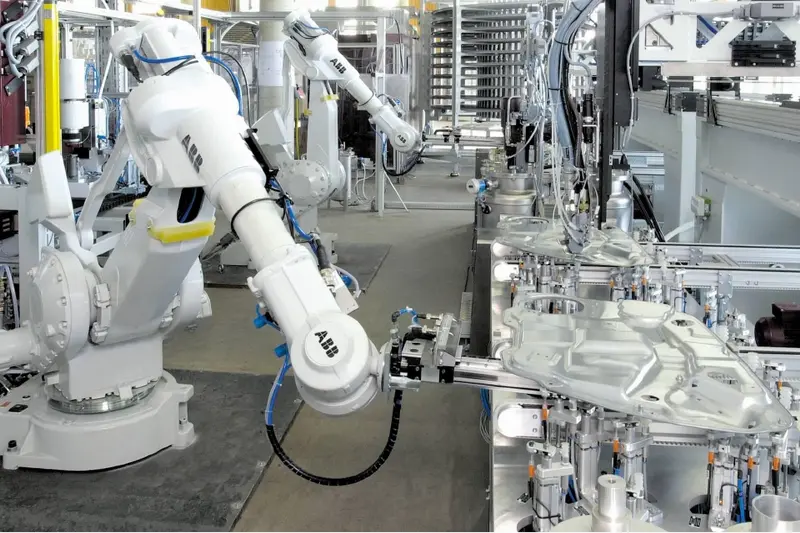

Cars are subjected to extreme weather conditions and load demands; parts and system elements have to maintain their durability once they have been assembled. Especially here, the gasket requirements as regards temperature resistance and external mechanical and chemical influences are extremely high.
Function-controlling electronic components have to be protected from dirt and moisture by potting directly on the components or foam sealing of housings.

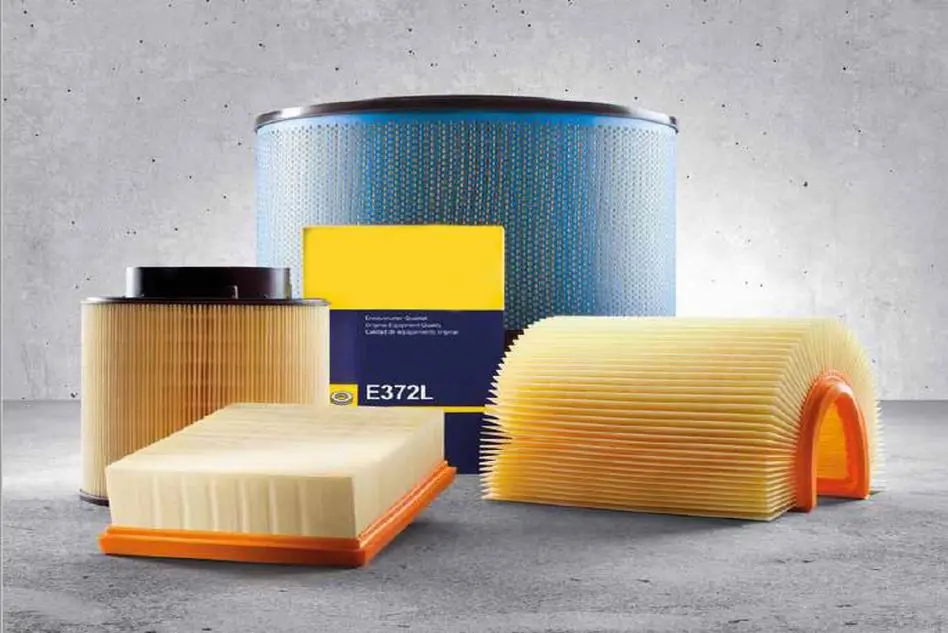

Filter systems have extreme tasks to fulfil; polluted air flows in on one side, and flows out cleaned on the other. This means constant load for the gasket that it has to withstand – both for filters used in vacuum cleaners and air filters in cars.

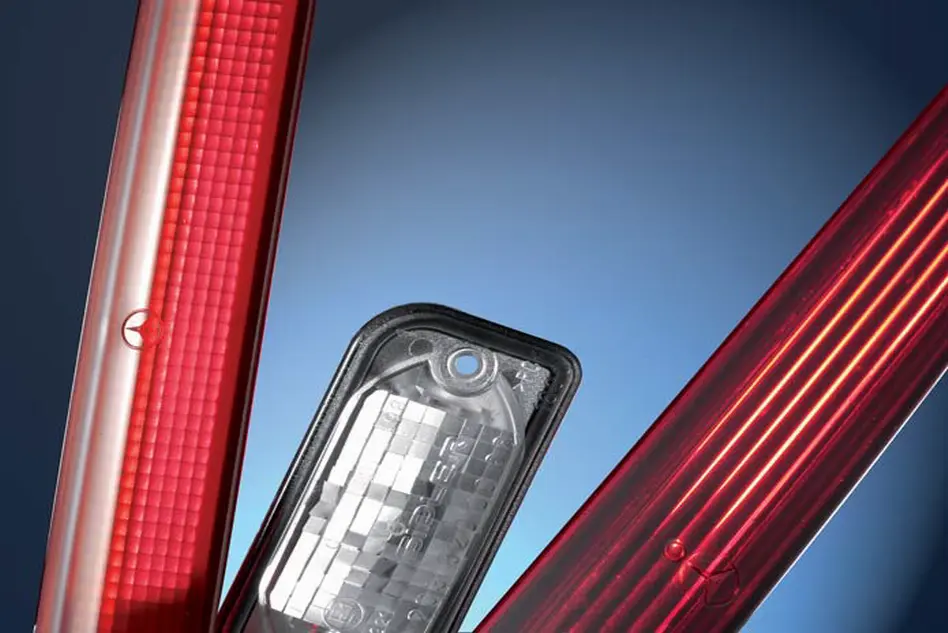

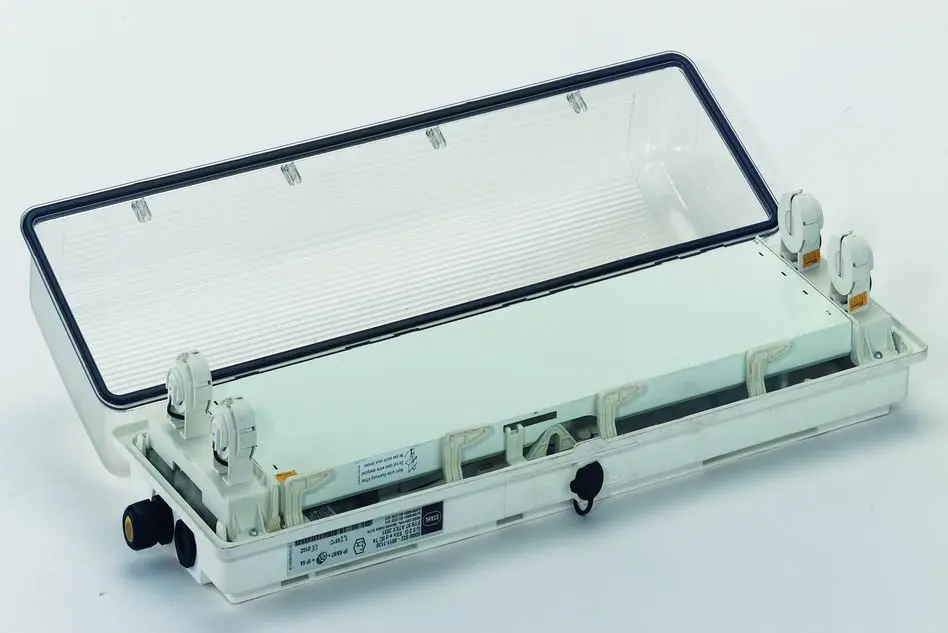

The perfect gasket performance of street lights, wet room lamps or information display lights is demonstrated literally on every corner. The sealing can meet requirements with ATEX, PTB or UL approvals for explosion protection lights.

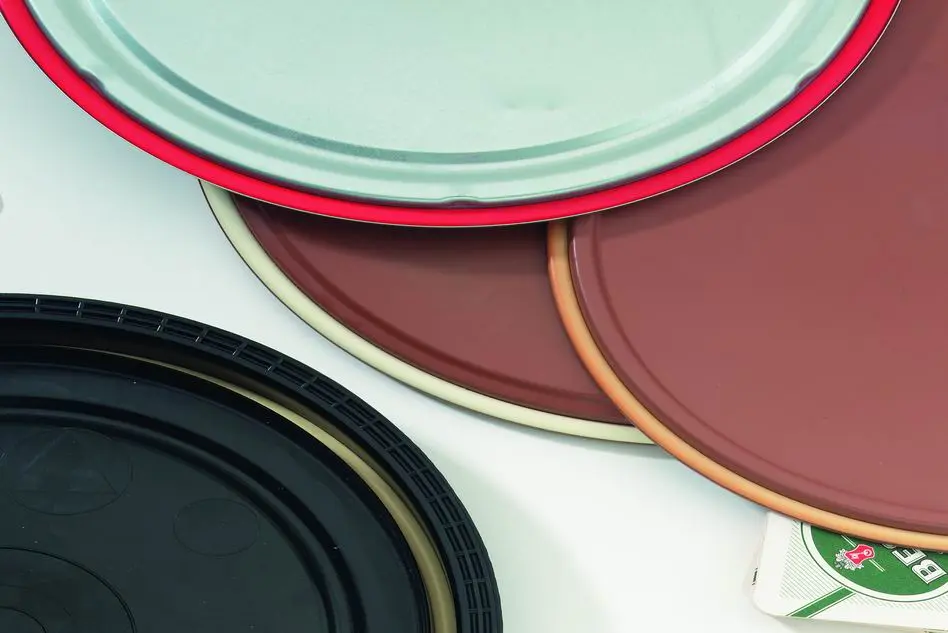

For black plate, tin plate, steel or plastic packaging.

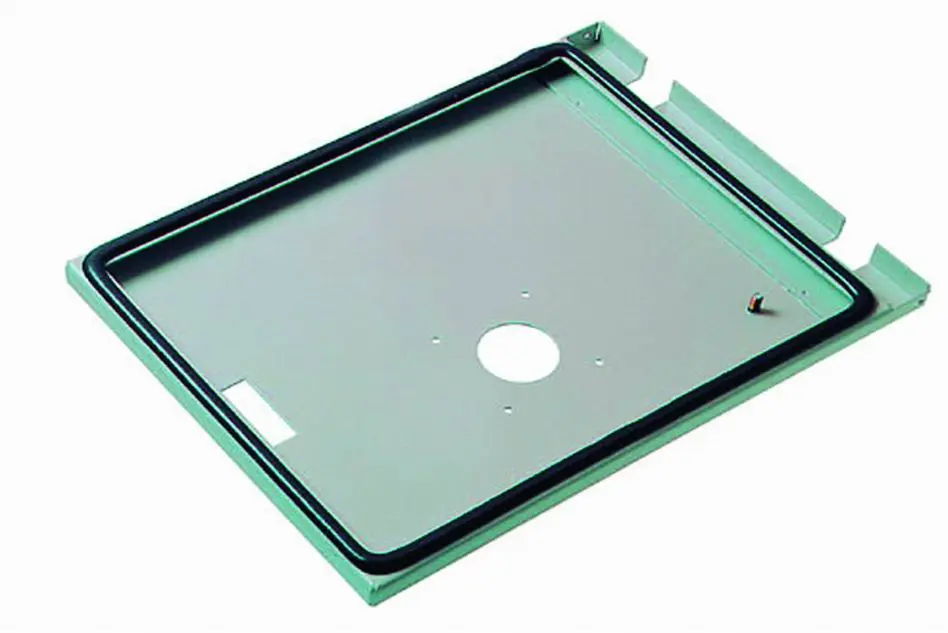

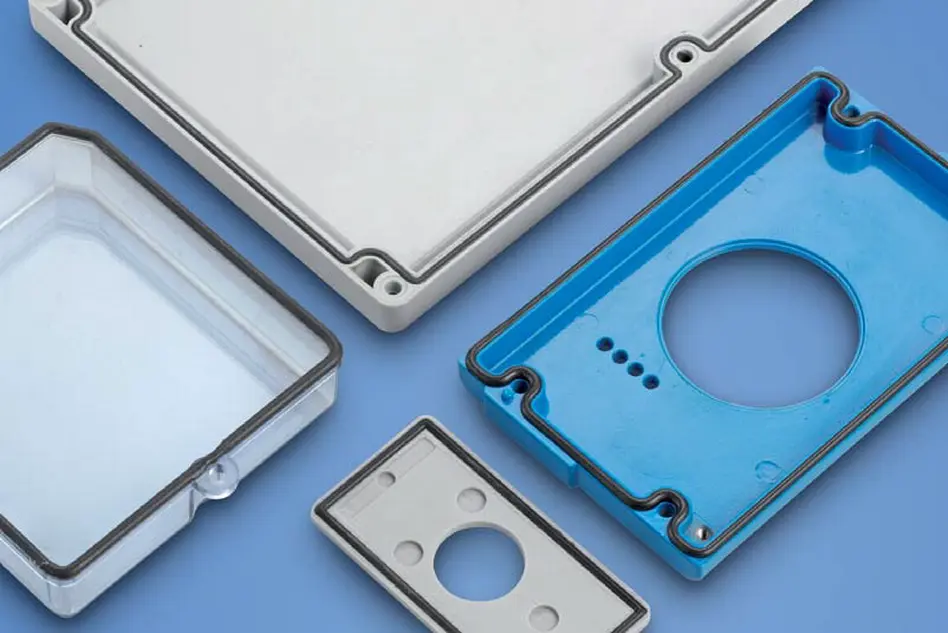

Dry and clean switch cabinets are a prerequisite for a functioning electrical distribution board. Using FERMAPOR K31 and FERMASIL gasket systems, Our material partner satisfies the highest IP protection classes for outdoor use of switch cabinet gaskets subjected to extreme weathering. Special product types are also tested for fire and explosion resistance in line with the NEMA, ATEX and UL standards.
